Standard Deep Well Pump System

Share With Others!

Use the Standard Deep Well Pump System if your well specs meet one of these scenarios:

Static Water Level:250' or less
Electric Submersible Pump Installed:No
Well Casing Outside Diameter:4" or less
Static Water Level:250' or less
Electric Submersible Pump Installed:Yes
Well Casing Outside Diameter:5" or more
Water Exits Well Through:Pitless adapter

View more detailed information about the Standard Deep Well Pump at Standard Deep Well Pump Basics.


The Bison Pumps Standard Deep Well Pump System is a Side-By-Side system that installs in the same well casing as your electric submersible pump system. It is a Freeze Proof pump system that can deliver you with Pressurized Backup Water when used in conjunction with the Pressurizing System. This provides you with water inside your home accessible to any water feature such as a toilet or sink! It can lift water from 250 feet deep using the standard handle or up to 300 feet with the addition of the Heavy Duty Pump Head option. The Standard Deep Well Pump System is recommended when there is sufficient space inside the well casing and the water from an electric submersible pump system exits underground.

Drop Pipe and Rod

Each Bison Pumps Side-By-Side Standard Deep Well Pump System comes with enough eight (8) foot sections of Drop Pipe and Rod to reach approximately 20 feet below the static water level. This depth allows for fluctuations in the water table and ensures that the cylinder will be below the water surface. The size of the Drop Pipe is typically 1 1/4” but we do offer and recommend 1” for certain applications. This would be where inside casing space availability is a concern or the static water level exceeds 160 feet.

Note that the deeper the static water level is, the more drop pipe will be required. This directly impacts the cost and design of the system. This is why a fixed cost for a pump system cannot be provided. Each pump system is unique to the customer’s well specifics.

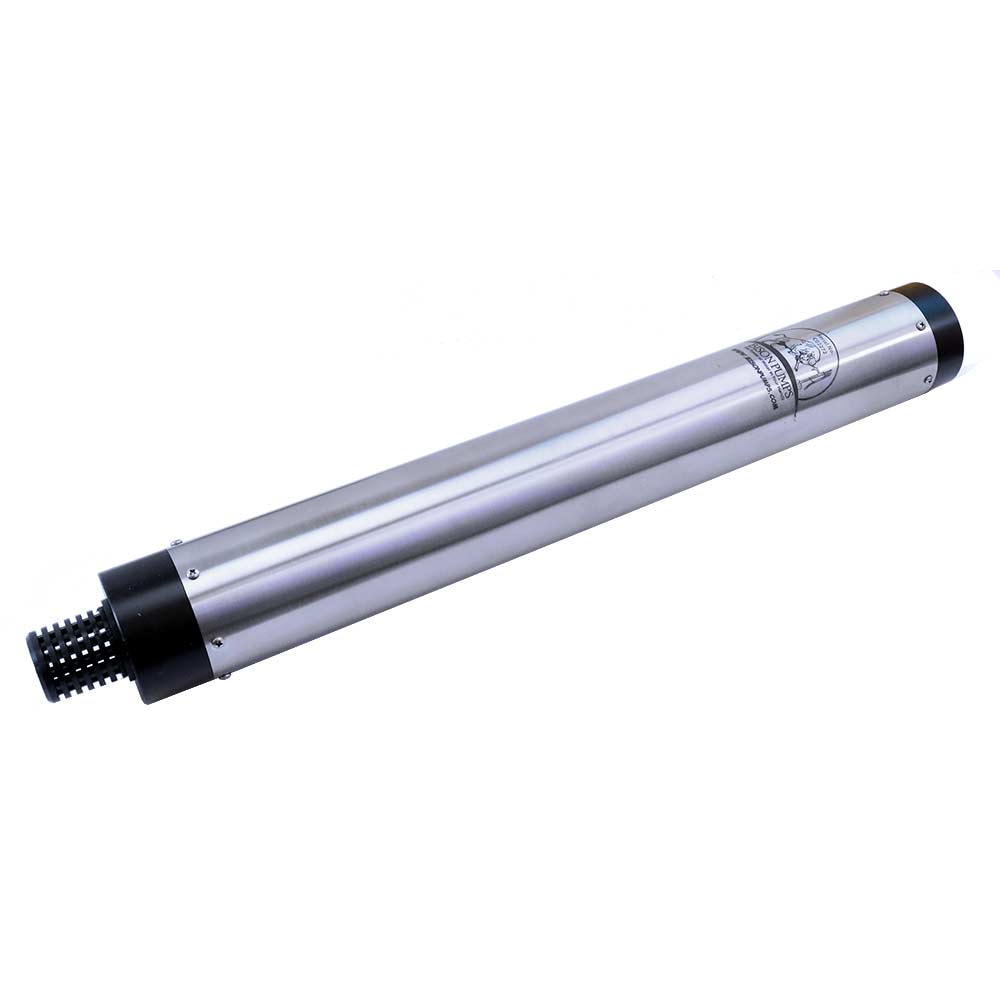

One appropriately sized cylinder is included in a Side-By-Side Standard Deep Well Pump System. In a Lift Pump system, like the Side-By-Side Standard, the cylinder is what lifts the water. This is the device that creates the vacuum to draw water into the water inlet and then uses its piston assembly to lift the water up the drop pipe. In a Side-By-Side application, the size of the cylinder is determined by space available inside the well casing and the static water level. We use this Standard Cylinder Selection Chart to determine the appropriate size for each customer’s situation.


Design and Construction

  • Stainless Steel Construction of Pump Head, Lift Rod, Handle and Hardware
  • Welded Components
  • Hand-Polished (for a professional shine finish)
  • Delivers Approximately 20 oz. per Stroke (with a 3 inch cylinder)
  • Pumps from 250 Foot Depth (Static Water Level is 250 feet or less)
  • Freeze Proof (built to withstand harsh climates)
  • No Priming Needed
  • No Routine Maintenance
  • Lifetime Warranty


Pump Head

  • Overall Height: 39”
  • Inlet Connection: 1 1/4” NPT
  • Spout Connection: 3/4” Garden Hose male thread
  • Handle: 36”
  • Weight: 25 pounds

Drop Pipe and Rod

  • Overall Length: 8’ standard (4’ available)
  • Pipe Diameter: 1” or 1 1/4” NPT Schedule 120 PVC threaded
  • Rod: 3/8” diameter 304 Stainless Steel
  • Weight: Approximately 8 pounds per 8 foot section


  • Overall Length: 22.5” (24.25” with plastic filter installed
    Cylinder DiameterStroke
    Cylinder Weight
    1.5"4 oz3 lbs
    2.0"8 oz3.5 lbs
    2.5"12 oz4.5 lbs
    3.0"20 oz6 lbs


  • 1 – 304 Stainless Steel Pump Head (configured to match your well casing)
  • 1 – 304 Stainless Steel Bottom Plate Kit (with gasket sized to match your well casing inside diameter)
  • 1 – Deep Well 304 Stainless Steel Cylinder (with safety rope net)
  • 1 – Schedule 120 PVC Drop Pipe and 3/8” Stainless Steel Rod (in 8’ lengths sufficient to reach approximately 20’ below your static water level)
  • 1 – Brass Hose Bibb Cap
  • 1 – Installation Paddle
  • 1 – Rod Retrieval Tool
  • 4 – Socket Set-Cup Point and Cup Point Cover
  • 1 – Installation Manual


Most Bison Pump Standard Deep Well Pump Systems can be installed by two handy people without the need for a professional. When the system’s pipe & rod quantity exceeds nine (9) sections, we recommend using mechanical devices for lifting. For a professional installation, you can contact one of our many dealers across the country. You can find a dealer near you by visiting our Dealer Locator page.



Related parts:

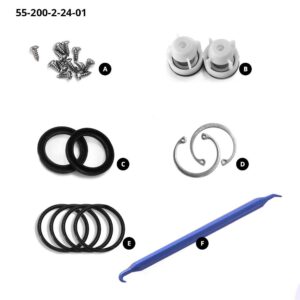

Maintenance Kits
