1 1/4″ NPT 8′ Schedule 120 PVC Drop Pipe and 3/8″ Stainless Steel Rods

Share With Others!

Products

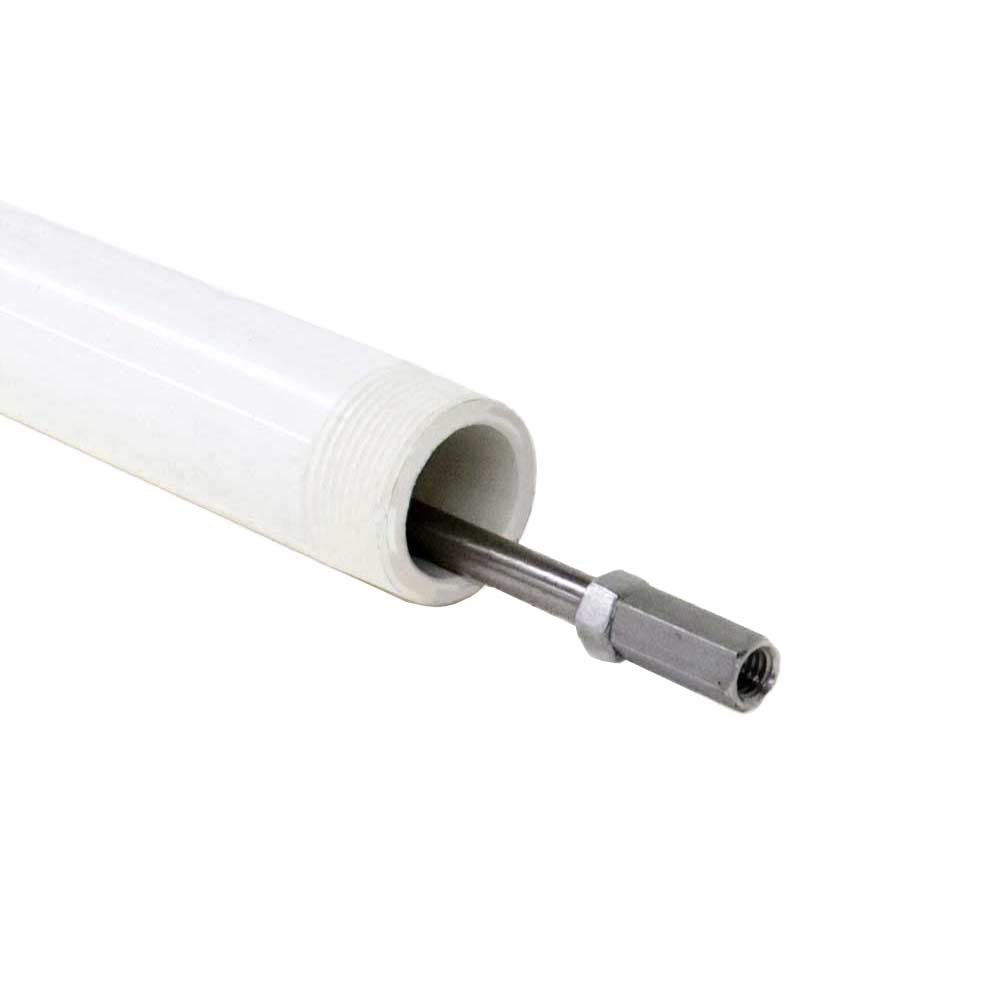

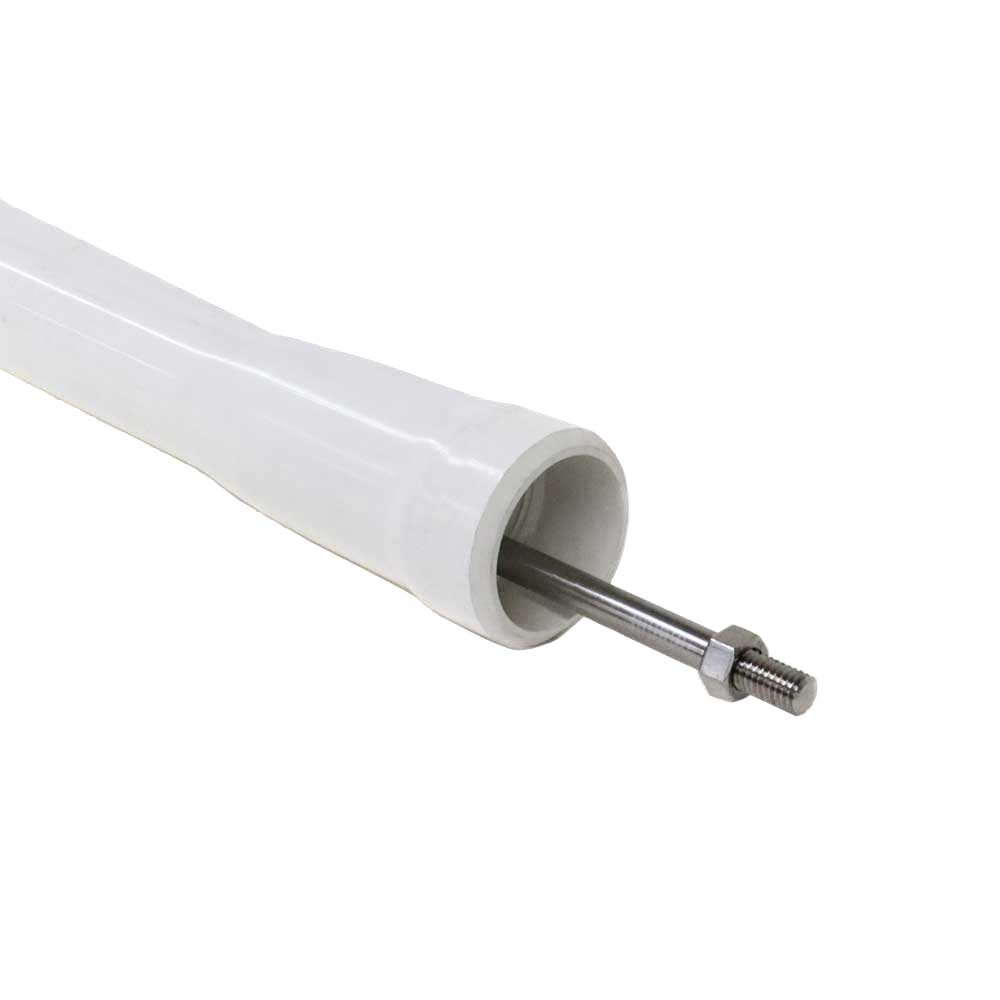

Bison Pumps 1 1/4” NPT Schedule 120 drop pipe has a wall thickness of 0.25 inches (compared to Schedule 40 at 0.133 inches). It has a coupling bell on one end that has a diameter of 2.125 inches while the pipe itself has a diameter of 1.66 inches. We must use the larger bell diameter when determining whether a system will fit inside a well based on the amount of available space. Both ends of the drop pipe are threaded and the male end comes with Teflon tape applied. It can be purchased in either 8 or 4 foot lengths.

Inside the drop pipe section is a 3/8” diameter stainless steel rod that is threaded on both ends. This serves as the sucker rod and connects the pump head lift rod to the cylinder piston assembly. It comes with the hardware required to attach the rod into the system.

Specs

Design and Construction

  • Β Thicker walled Schedule 120 PVC Drop Pipe
  • Β Patented Bell to prevent cross threading
  • Β Stainless Steel Rod and hardware
  • Β Lifetime warranty on all manufactured parts

Dimensions

  • Wall Thickness: 0.25 inches
  • Outside diameter of bell: 2.125 inches
  • Outside diameter of pipe body: 1.66 inches
  • Length: 8 feet (4 feet available)
  • Weight: 8 pounds

Contents

  • 1 – 8-foot section 1 1/4” NPT Schedule 120 PVC Drop Pipe
  • 1 – 8-foot section 3/8” diameter stainless steel threaded rod
  • 3 – Lock nuts
  • 1 – Coupling nut

Pumps

This part works with these pumps:
