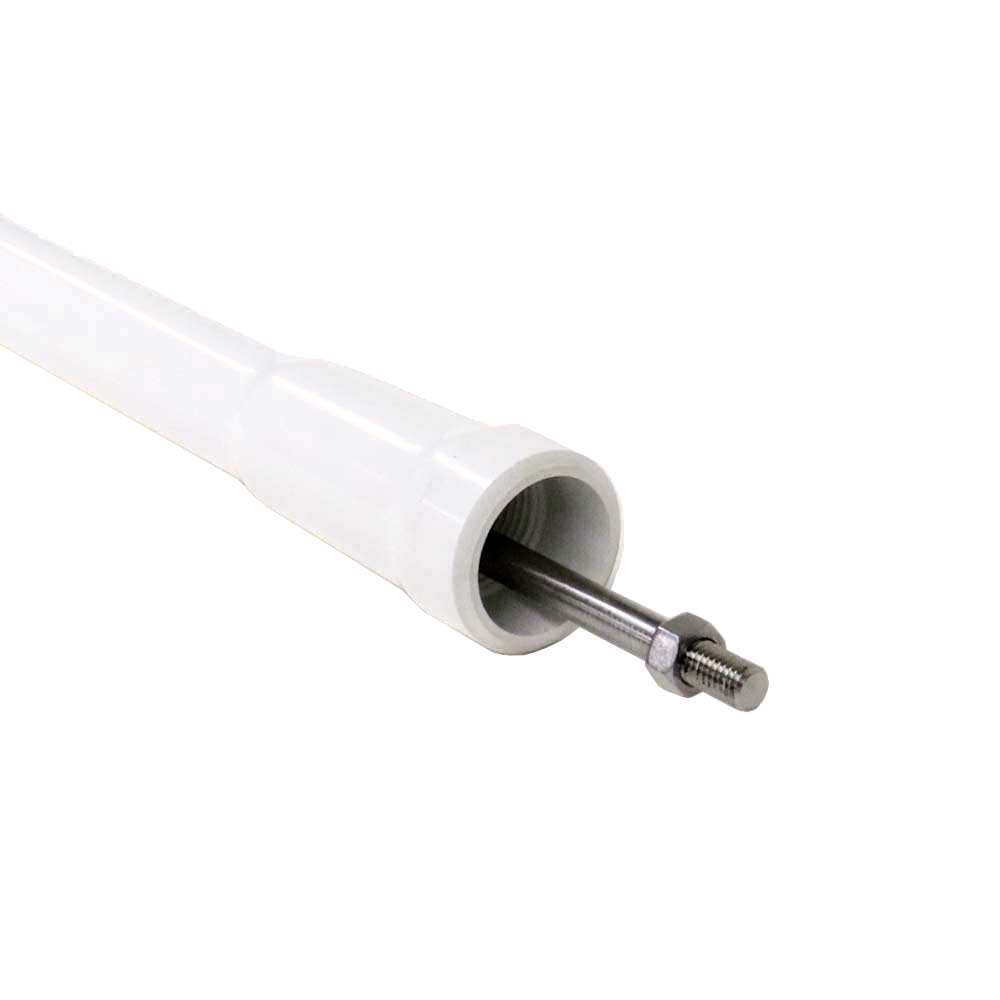

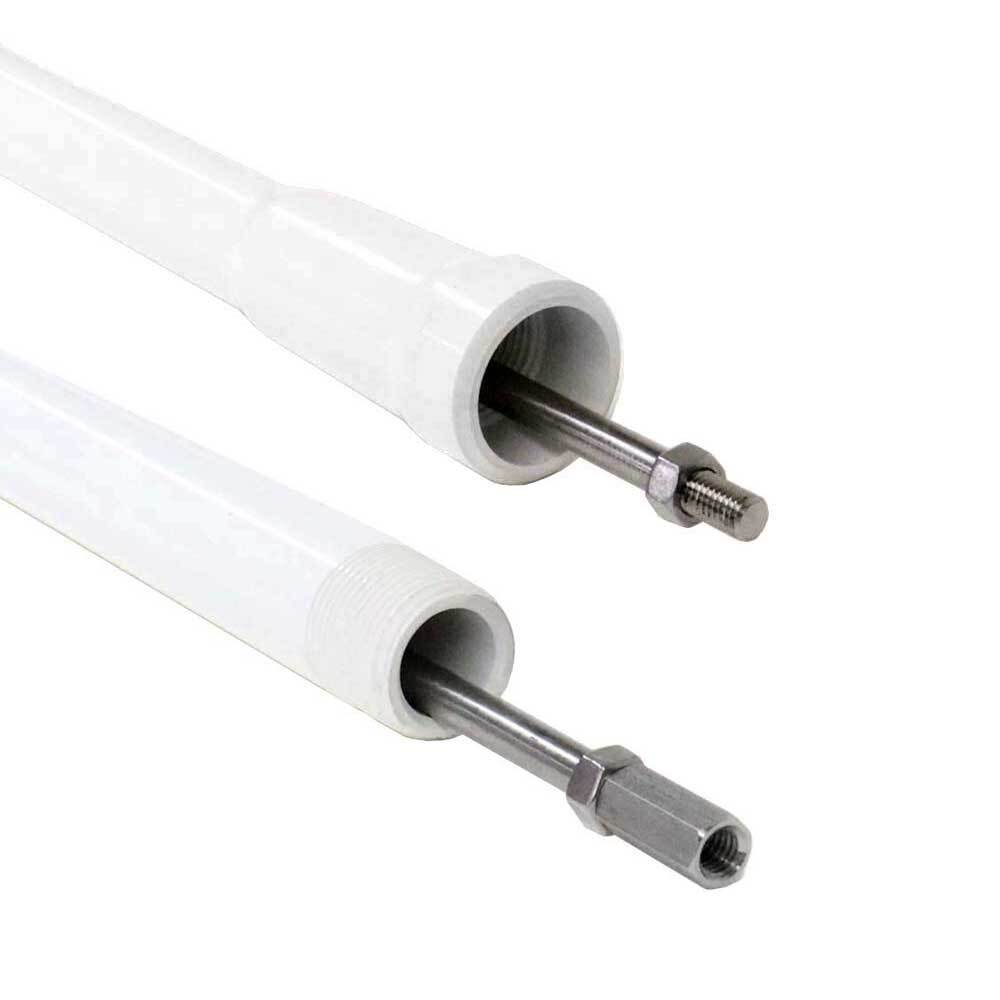

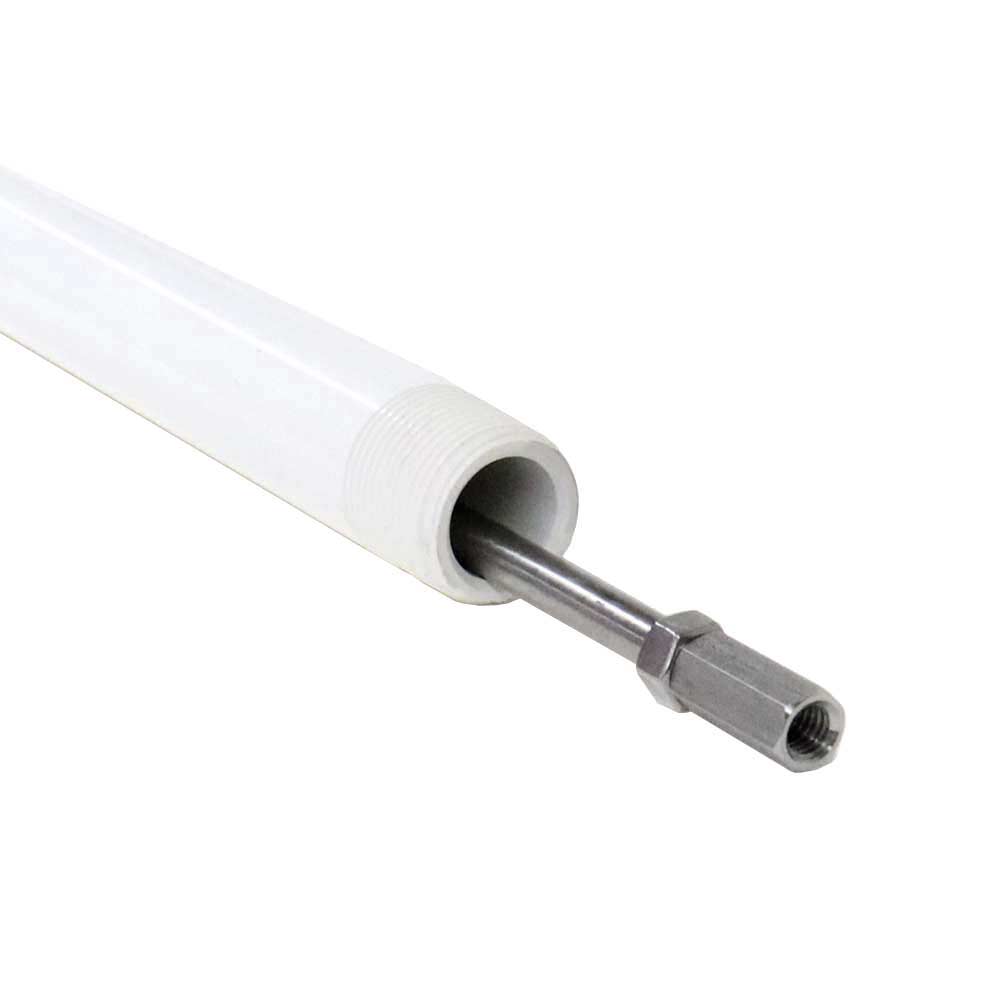

Bison Pumps 1” NPT Schedule 120 drop pipe has a wall thickness of 0.25 inches (compared to Schedule 40 at 0.133 inches). It has a coupling bell on one end that has a diameter of 1.77 inches while the pipe itself has a diameter of 1.315 inches. We must use the larger bell diameter when determining whether a system will fit inside a well based on the amount of available space. Both ends of the drop pipe are threaded and the male end comes with Teflon tape applied. It can be purchased in either 8 or 4 foot lengths.
Inside the drop pipe section is a 3/8” diameter stainless steel rod that is threaded on both ends. This serves as the sucker rod and connects the pump head lift rod to the cylinder piston assembly. It comes with the hardware required to attach the rod into the system.
