2″ Threaded Deep Well Pump System

Share With Others!

Use the 2″ Threaded Deep Well Pump System if your well specs meets this scenario:

SCENARIO #1
Static Water Level:250' or less
Electric Submersible Pump Installed:No
Well Casing Outside Diameter:2" NPT

View more detailed information about the Standard Deep Well Pump at 2″ Threaded Deep Well Pump Basics.

Details

The Bison Pumps 2” Threaded Deep Well Pump System is a Stand-Alone system that functions the same as the Side-By-Side Deep Well Pumps but is not installed in the same well casing as your electric submersible pump system due to a lack of available space inside the casing. It is a Freeze Proof pump system that can deliver you with Pressurized Backup Water when used in conjunction with the Pressurizing System. This provides you with water inside your home accessible to any water feature such as a toilet or sink. It can lift water from 250 feet deep using the standard handle or up to 300 feet with the addition of the Heavy Duty Pump Head option. It is recommended when the well casing is 2” NPT and there is not an electric submersible pump system installed in the well.

Drop Pipe and Rod

Each Bison Pumps Stand Alone 2” Threaded Deep Well Pump System comes with enough eight (8) foot sections ofΒ Drop Pipe and RodΒ to reach approximately 20 feet below the static water level. This depth allows for fluctuations in the water table and ensures that the cylinder will be below the water surface.

Note that the deeper the static water level is, the more drop pipe and rod will be required. This directly impacts the cost and design of the system. This is why a fixed cost for a pump system cannot be provided. Each pump system is unique to the customer’s well specifics.

Cylinder

One 1 1/2” cylinder is included in a Stand Alone 2” Threaded Deep Well Pump System. In aΒ Lift PumpΒ system, like the Stand Alone, the actual β€œpump” is the cylinder. This is the device that creates the vacuum to draw water into the water inlet and then uses its piston assembly to lift the water up the drop pipe. When installing the 2” Threaded Deep Well Pump System, the only cylinder that would fit inside the well casing is the 1 1/2” diameter cylinder. It outputs a gallon of water for roughly every 32 strokes.

Specs

Design and Construction

  • Stainless Steel Construction of Pump Head, Lift Rod, Handle and Hardware (to prevent rust and ensure safe, uncontaminated water)
  • Welded Components
  • Hand-Polished (for a professional shine finish)
  • Delivers Approximately 4 oz. per Stroke with a 1.5-inch cylinder
  • Pumps from 250 Foot Depth (Static Water Level is 250 feet or less)
  • Freeze Proof (built to withstand harsh climates)
  • No Priming Needed
  • No Routine Maintenance
  • Lifetime Warranty

Dimensions

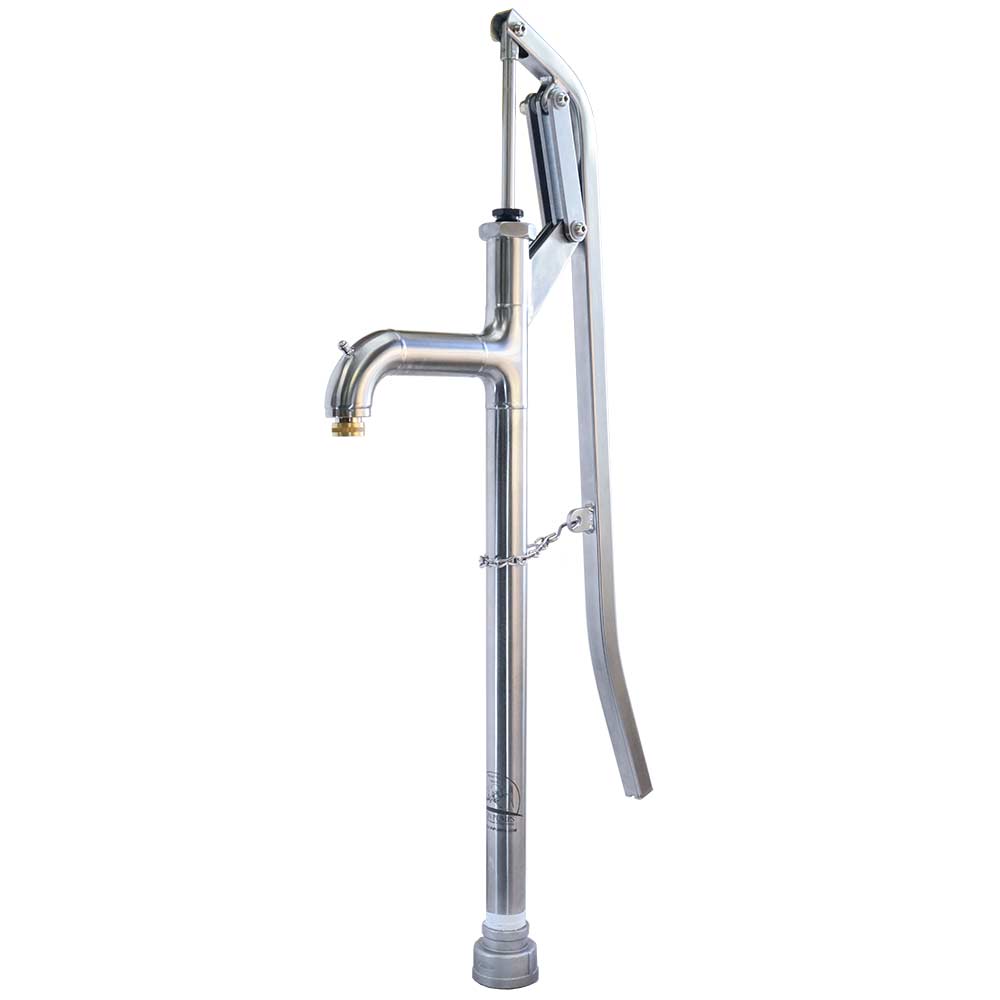

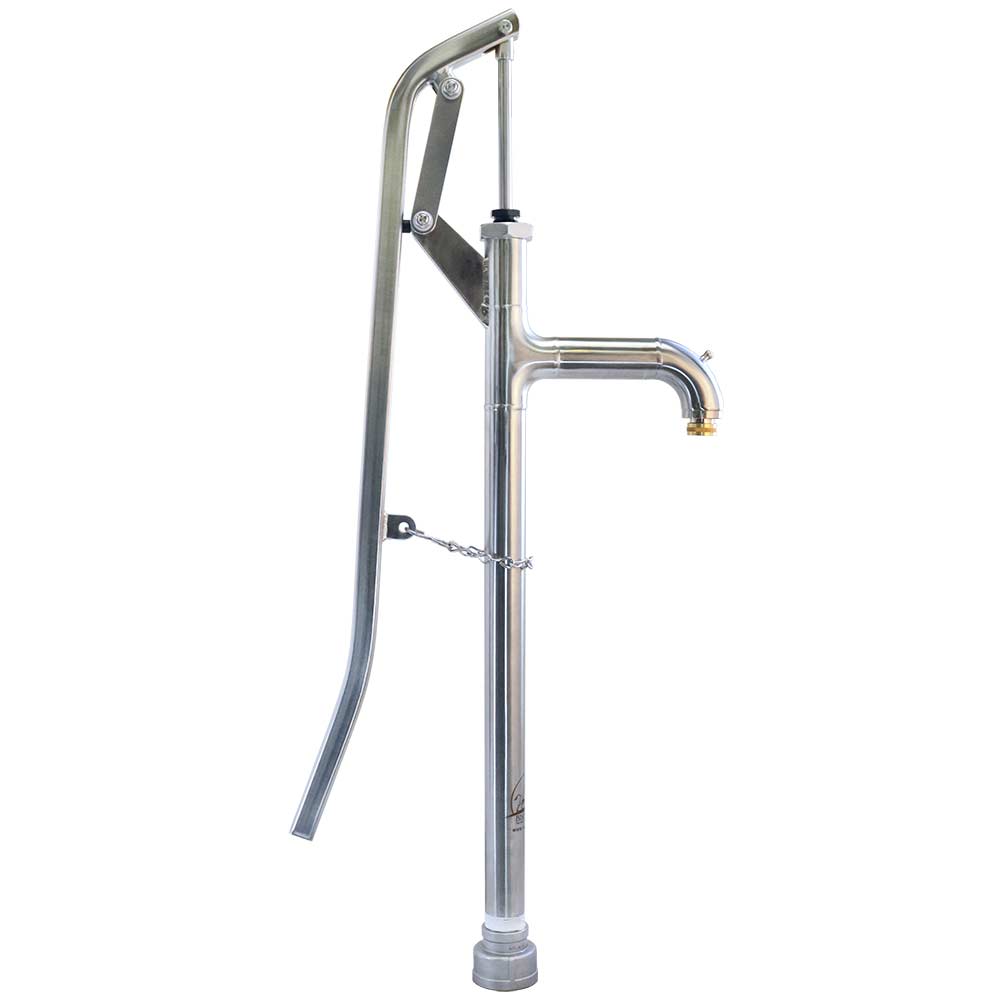

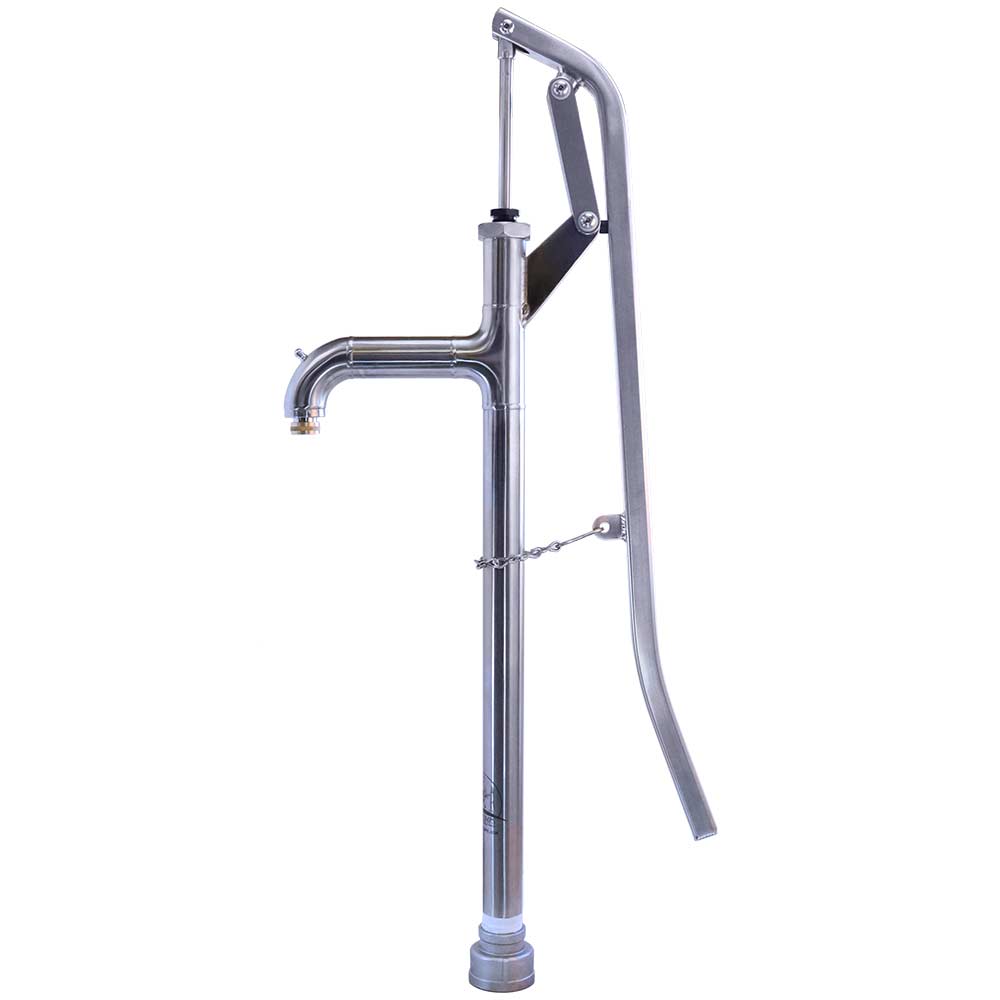

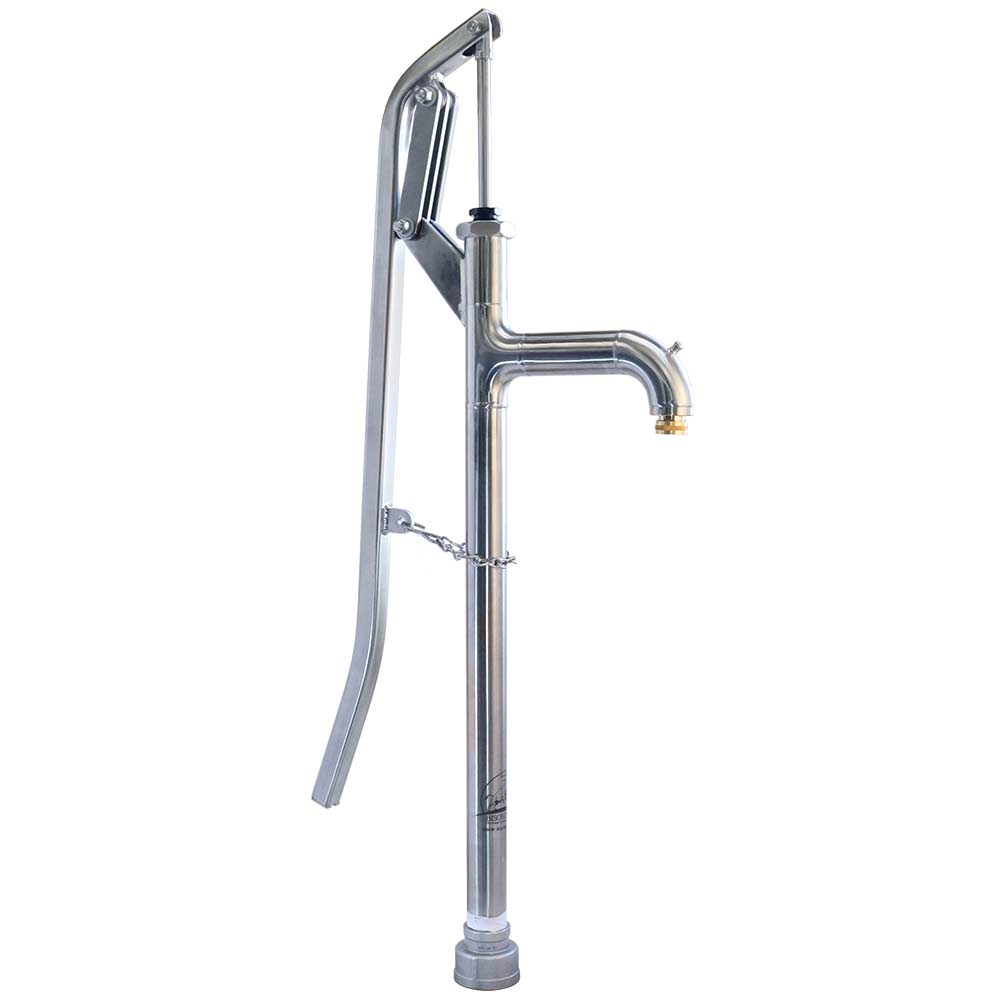

Pump Head

  • Overall Height: 39”
  • Inlet Connection: 1” NPT
  • Spout Connection: 3/4” Garden Hose male thread
  • Handle: 36”
  • Weight: 20 pounds

Drop Pipe and Rod

  • Overall Length: 8’ standard (4’ available)
  • Drop Pipe Diameter: 1” Schedule 120 PVC
  • Rod: 3/8” diameter 304 Stainless Steel
  • Weight: Approximately 8 pounds per 8 foot section

Cylinder

  • Overall Length: 22.5” (24.25” with plastic filter installed)
    Cylinder DiameterStroke
    Output
    Cylinder Weight
    1.5"4 oz3 lbs

Contents

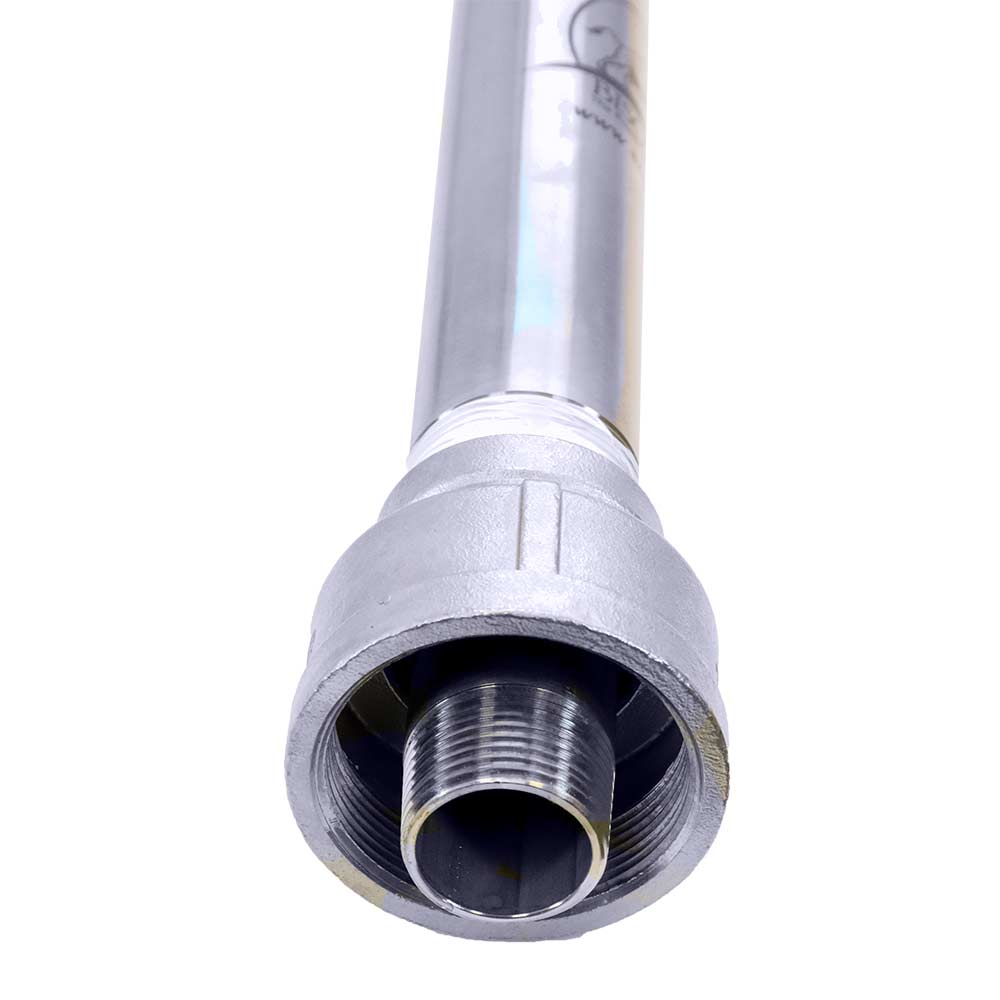

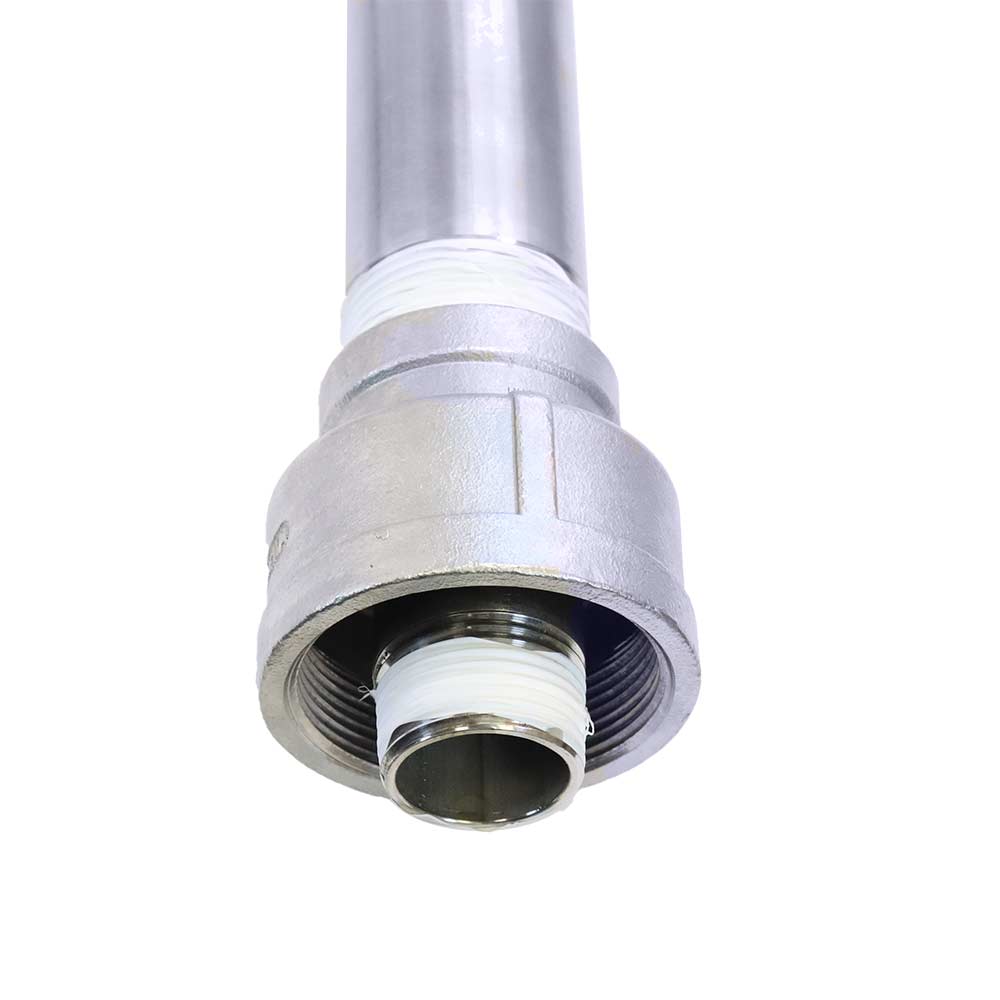

  • 1 – 304 Stainless Steel Pump Head with 2” NPT bushing to attach to threaded well casing
  • 1 – Deep Well 304 Stainless Steel 1 1/2” Cylinder (with safety rope net)
  • 1 – Schedule 120 1” NPT PVC Drop Pipe and 3/8” Stainless Steel Rod (in 8’ lengths sufficient to reach approximately 20’ below your static water level)
  • 1 – Brass Hose Bibb Cap
  • 1 – Installation Paddle
  • 1 – Rod Retrieval Tool
  • 1 – Installation Manual

Installation

Most Bison Pump 2” Threaded Deep Well Pump Systems can be installed by two handy people without the need for a professional. When the system’s drop pipe & rod quantity exceeds nine (9) sections, we recommend using mechanical devices for lifting. For a professional installation, you can contact one of our many dealers across the country. You can find a dealer near you by visiting ourΒ Dealer LocatorΒ page.

Manuals

Parts

Related parts:

Maintenance Kits

Related maintenance kits:

Accessories

Related accessories:

Options

This pump has these options that must be purchased at time of order:
