Deep Well Pump Head Maintenance Kit – Revision D Manufactured between January 2009 and September 9, 2012

SKU 55-200-1-05-01 Category

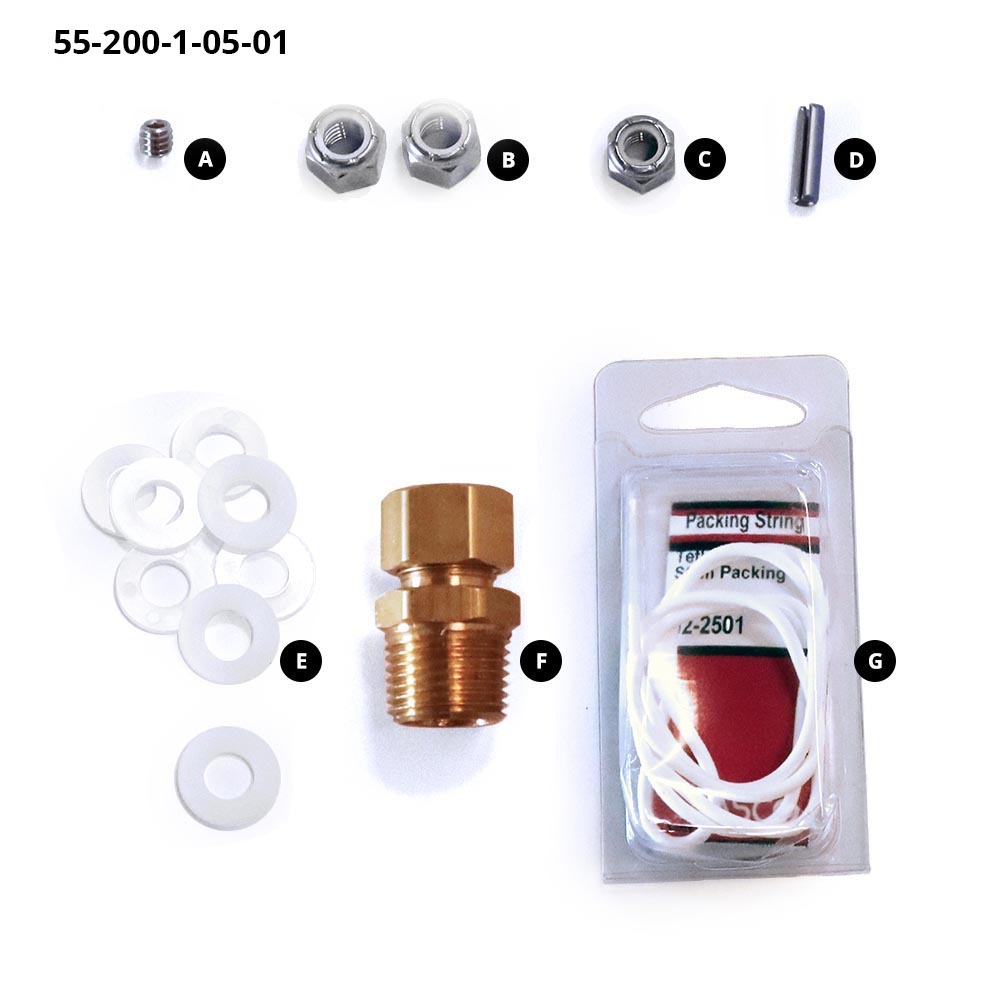

DescriptionQtyPart Number
A) Rod Connector Set Screw104-000-1-45-31
B) Hex Lock Nut, 3/8β€³-16204-000-1-50-20
C) Hex Lock Nut, 5/16β€³-18104-000-1-50-19
D) Rod Connector Roll Pin104-000-1-62-36
E) Link Washer804-000-5-40-01
F) Brass Adapter, 1⁄2” x 1⁄2”104-035-0-72-04
G) Teflon Packing Rope155-200-0-15-00

Share With Others!

Products

To help identify the appropriate maintenance kit, review the pump head area around where the Lift Rod enters/exits the body. The pump heads manufactured during this period have the following characteristics:

  1. A brass 1/2” Γ— 1/2” two piece Packing Gland Nut.
  2. Teflon Packing Gland Rope.
  3. The hex top plate is either threaded, soldered or welded onto the top of the pump body.

With this kit you will be able to replace most wear items to keep your Bison Pump running strong!

Specs

Design and Construction

  • Replacements for most wear items
  • Additional stainless-steel hardware

Contents

Manual

  • Contact us directly for instructions.

Parts

Related parts:

Pumps

This part works with these pumps:
