Inline – Top Deep Well Pump System

Share With Others!

Use the Inline – Top Deep Well Pump System if your well specs meet one of these scenarios:

SCENARIO #1
Static Water Level:160' or less
Electric Submersible Pump Installed:Yes
Well Casing Outside Diameter:4" or less
Freezing is an Issue:No
Or...
SCENARIO #2
Static Water Level:160' or less
Electric Submersible Pump Installed:Yes
Well Casing Outside Diameter:5" or more
Well has a Liner:Yes
Freezing is an Issue:No

View more detailed information about the Inline – Top Deep Well Pump at Inline – Top Deep Well Pump Basics.

Details

The Bison Pumps Inline – Top Deep Well Pump System is a Stacked Deep Well Pump that installs in the same well casing as your electric submersible pump system. It is not a Freeze Proof pump system. It can deliver you with Pressurized Backup Water through your existing water line. This is possible when you operate the manual hand pump but leave the shut-off valves set for the electric submersible pump operation. This provides you with water inside your home accessible to any water feature such as a toilet or sink. This system can lift water from 160 feet deep. An Inline – Top Deep Well Pump System is recommended when there is not sufficient space for the β€œBison Pumps Side-By-Side Deep Well Pump System” and an electric submersible pump system to be installed inside the well casing/liner.

Drop Pipe and Rod

Each Bison Pumps Stacked Inline – Top Deep Well Pump System comes with enough eight (8) foot sections ofΒ Drop Pipe and RodΒ to reach approximately 20 feet below the static water level. This depth allows for fluctuations in the water table and ensures that the cylinder will be below the water surface. The size of the Drop Pipe is typically 1 1/4” NPT.

Note that the deeper the static water level is, the more drop pipe will be required. This directly impacts the cost and design of the system. This is why a fixed cost for a pump system cannot be provided. Each pump system is unique to the customer’s well specifics.

Cylinder

One appropriately sized cylinder is included in a stacked pump system. In aΒ Lift Pump system, like the stacked, the actual β€œpump” is the cylinder. This is the device that creates the vacuum to draw water into the water inlet and then uses its piston assembly to lift the water up the drop pipe. In a stacked application, the size of the cylinder is determined by the static water level and the GPM of the electric submersible pump. We use this Stacked Cylinder Selection Chart to determine the appropriate size based on the static water level.

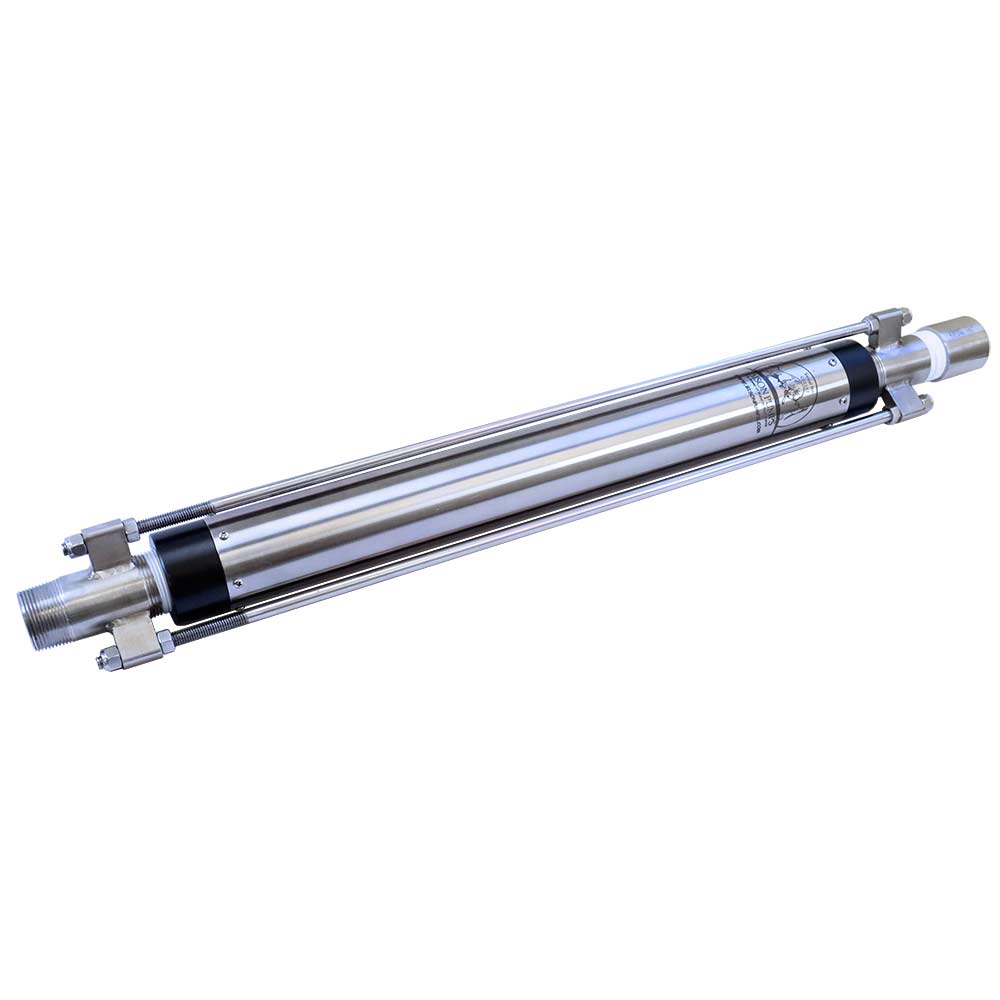

Stacked Cylinders are enclosed in a protective cage to prevent the weight of the electric submersible pump from pulling it apart. The diameter of this cage is approximately 3 inches. Therefore, that defines the minimum inside casing diameter in which this pump system can be installed.

Specs

Design and Construction

  • Stainless Steel Construction of Pump Head, Lift Rod, Handle and Hardware (to prevent rust and ensure safe, uncontaminated water)
  • Welded Components
  • Hand-Polished (for a professional shine finish)
  • Delivers Approximately 12 oz. per Stroke (with a 2 1/2-inch cylinder)
  • Pumps from 160 Foot Depth (Static Water Level is 160 feet or less)
  • No Priming Needed
  • No Routine Maintenance
  • Lifetime Warranty

Dimensions

Pump Head

  • Overall Height: 39”
  • Inlet Connection: 1 1/4” NPT
  • Spout Connection: 3/4” Garden Hose male thread
  • Handle: 36”
  • Inline – Top Outlet Connection: Standard 1 1/4” NPT male thread
  • Weight: 27 pounds

Drop Pipe and Rod

  • Overall Length: 8’ standard (4’ available)
  • Pipe Diameter: 1” or 1 1/4” NPT Schedule 120 PVC threaded
  • Rod: 3/8” diameter 304 Stainless Steel
  • Weight: Approximately 8 pounds per 8 foot section

Stacked Cylinder

  • Overall Length: 31”
    Cylinder DiameterStroke
    Output
    Cylinder Weight
    2.0"8 oz9.5 lbs
    2.5"12 oz10.5 lbs

Contents

  • 1 – 304 Stainless Steel Pump Head with Spout Shut-Off Valve (configured to match your well casing)
  • 1 – 304 Stainless Steel Bottom Plate Kit (with gasket sized to match your well casing)
  • 1 – Deep Well 304 Stainless Steel Stacked Cylinder (with safety rope net)
  • 1 – Schedule 120 PVC Drop Pipe and 3/8” Stainless Steel Rod (in 8’ lengths sufficient to reach approximately 20’ below your static water level)
  • 1 – Brass Hose Bibb Cap
  • 1 – Installation Paddle
  • 1 – Rod Retrieval Tool
  • 4 – Socket Set-Cup Point and Cup Point Cover
  • 1 – Installation Manual

Installation

Since installing the Bison Pump Inline – Top Deep Well Pump System requires pulling the electric submersible pump, it is recommended to hire a professional that has the proper lifting equipment. For a professional installation, you can contact one of our many dealers across the country. You can find a dealer near you by visiting ourΒ Dealer LocatorΒ page.

Manuals

Parts

Related parts:

Maintenance Kits

Related maintenance kits:

Accessories

Related accessories:

Options

This pump has these options that must be purchased at time of order:
