Drain Back Feature

NOTE: This product option must be included with your initial pump system order.

SKU 50-001-1-00-00

NOTE: This product option must be included with your initial pump system order.

SKU 50-001-1-00-00

Share With Others!

Shallow Well Pumps like the Model 1900 Stainless Steel Pitcher Pump are subject to freezing because the piston and foot valve are both located in the body of the pump which is above ground and exposed to the weather. With a normal piston / foot valve system, water is trapped between the foot valve and the piston. The only way to remove that water is by removing the piston assembly and draining the pump.

Bison Pumps has developed the Drain Back Feature for customers who need to winterize their pump that is exposed to freezing conditions. For example, the Drain Back Feature would be needed in a rustic cabin without electricity that is seasonally inhabited. SeeΒ Drain Back Feature BasicsΒ for details on how this system operates.

This feature has components inside the pump body that the standard Model 1900 pump does not have. Therefore, it must be included at the time of purchase. It cannot be added to the pump at a later date.

Specs

Design and Construction

  • Stainless Steel Construction
  • Welded Components
  • Internal Drain Back Feature (for easy winterization)
  • Foot Valve Housing – 304 stainless steel
  • Spring loaded drain pin – brass
  • Check valve drain pin – 304 stainless steel
  • Lifetime Warranty

Contents

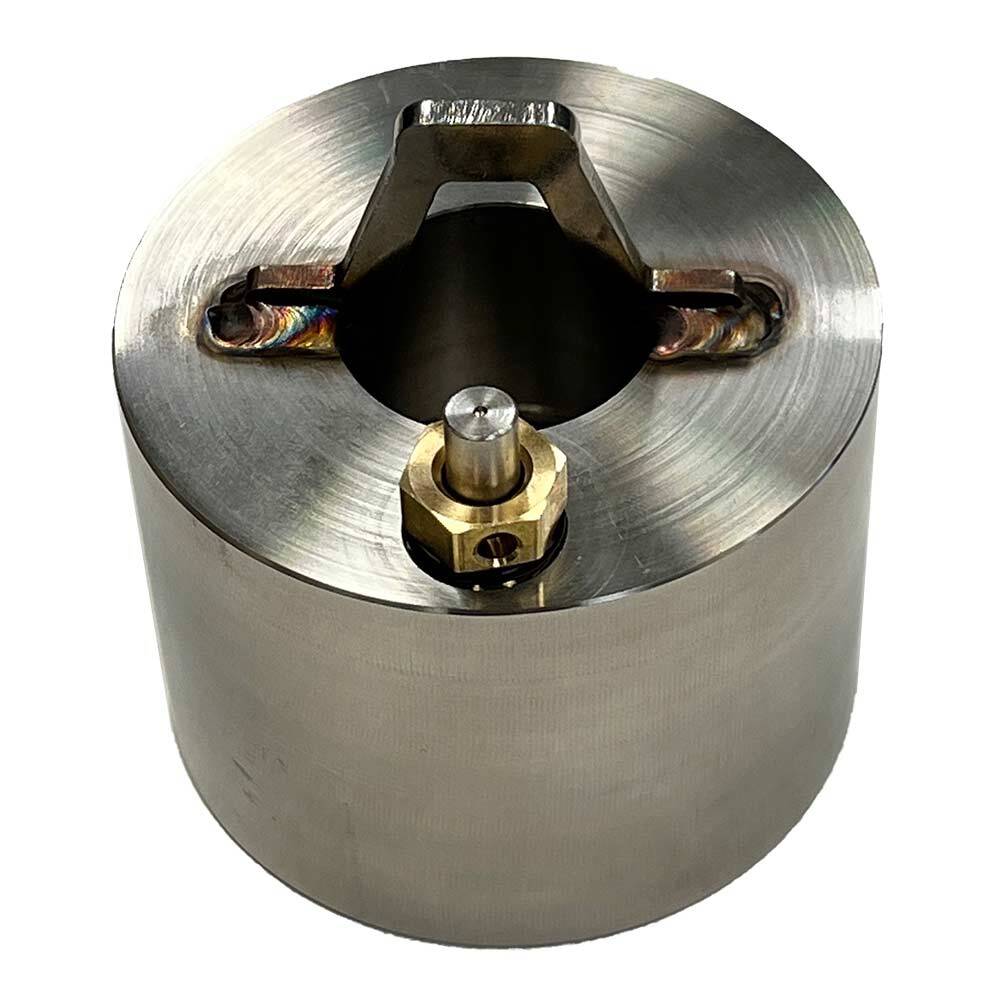

  • 1 – 304 Stainless Steel Foot Valve Housing with internal drain pins

Installation

  • Performed during construction of the pump
