Deep Well Pump Head Maintenance Kit – Revision G Manufactured between September 10, 2012 and July 2017

SKU 55-200-2-05-01 Category

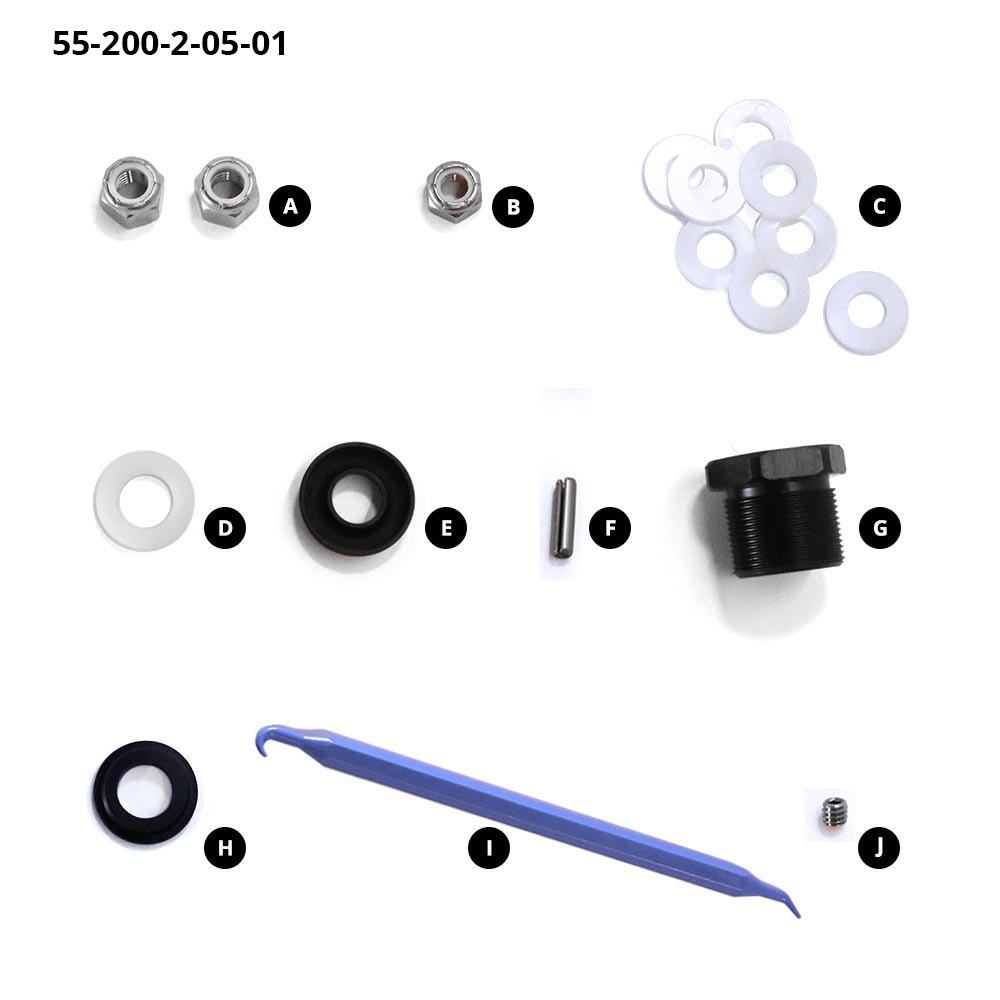

DescriptionQtyPart Number
A) Hex Lock Nut, 3/8β€³-16204-000-1-50-20
B) Hex Lock Nut, 5/16β€³-18104-000-1-50-19
C) Link Washer804-000-5-40-01
D) Packing Gland Backing Washer104-000-5-40-02
E) Packing Gland Cup Seal104-001-3-71-01
F) Rod Connector Roll Pin104-000-1-62-36
G) Packing Gland Nut150-200-0-07-00
H) Bottom Bushing150-001-0-08-05
I) O-Ring Pick Tool155-001-0-07-00
J) Rod Connector Set Screw104-000-1-45-31

Share With Others!

Products

To help identify the appropriate maintenance kit, review the pump head area around where the Lift Rod enters/exits the body (Top Hex Plate Gland Nut Cavity).

The pump heads manufactured during this period have the following characteristics:

  1. A brass Packing Gland Nut in early versions or a Delrin Gland Nut in later versions.
  2. Packing Gland Cup Seal instead of Teflon Rope – this is the primary change to this pump head version.

The handle / lift rod area manufactured during this period will have one of the following characteristics:

  1. In early versions, the Lift Rod is threaded into the Rod Connector and is held in place with a Set Screw.
  2. In later versions, the Lift Rod is pressed into the Rod Connector and secured by a Roll Pin.

Both items, Set Screw and Roll Pin, are included in this kit.

With this kit you will be able to replace most wear items to keep your Bison Pump running strong!

Specs

Design and Construction

  • Replacements for most wear items
  • O-Ring Pick Tool to assist with the removal of O-Rings and Cup Seals
  • Additional stainless-steel hardware

Contents

Manual

  • Contact us directly for instructions.

Parts
