Deep Well Pump Head Maintenance Kit – Revision H Manufactured between August 2017 and June 2019

SKU 55-200-3-05-01 Category

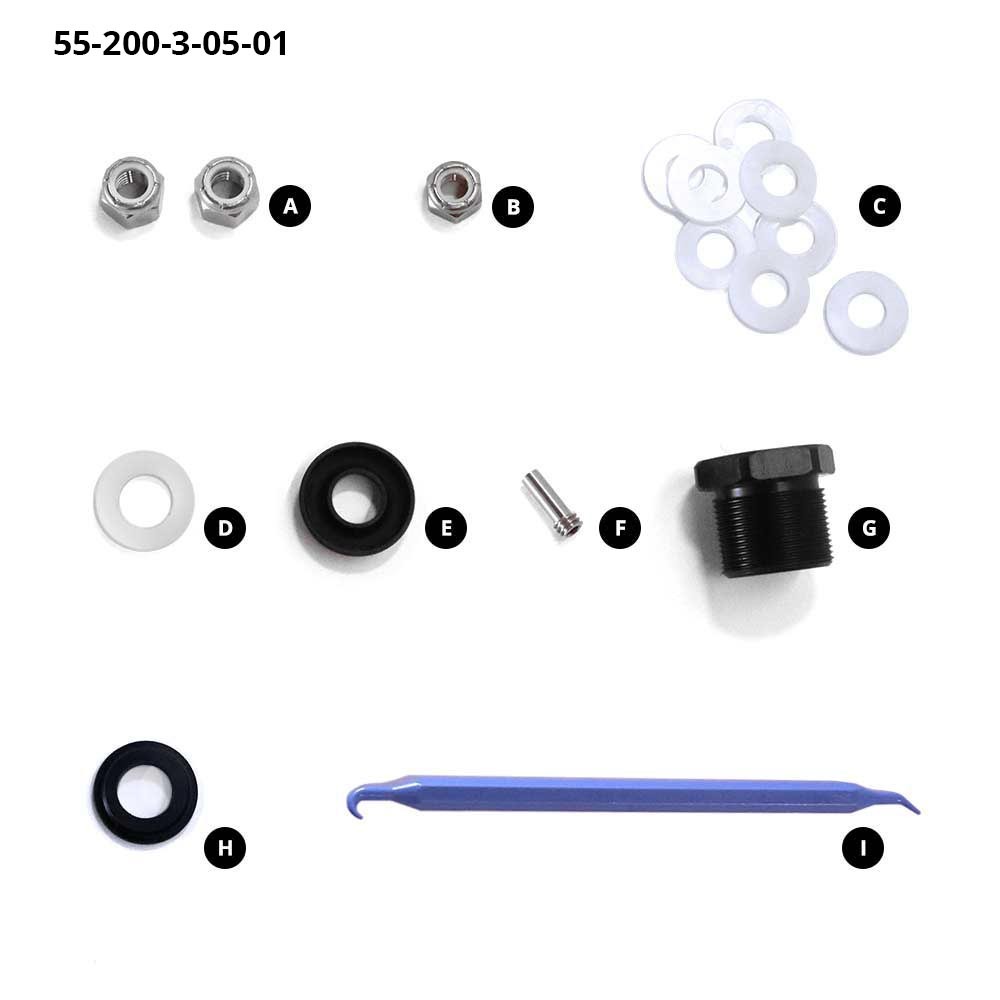

DescriptionQtyPart Number
A) Hex Lock Nut, 3/8″-16204-000-1-50-20
B) Hex Lock Nut, 5/16″-18104-000-1-50-19
C) Link Washer804-000-5-40-01
D) Packing Gland Backing Washer104-000-5-40-02
E) Packing Gland Cup Seal104-001-3-71-01
F) Rod Connector Shoulder Screw150-001-0-04-05
G) Packing Gland Nut150-200-0-07-00
H) Bottom Bushing150-001-0-08-05
I) O-Ring Pick Tool155-001-0-07-00

Share With Others!

Products

To help identify the appropriate maintenance kit, review the pump head area around where the Lift Rod enters/exits the body (Top Hex Plate Gland Nut Cavity).

The pump heads manufactured during this period have the following characteristics:

  1. Delrin Packing Gland Nut
  2. Packing Gland Cup Seal
  3. Short Bottom Bushing

The handle / lift rod area manufactured during this period will have the following characteristics:

  1. The Lift Rod is NOT threaded into the Rod Connector
  2. The Lift Rod slides into the Rod Connector and is held in place with a Shoulder Bolt. There is no longer a Roll Pin or Set Screw used for this purpose. These are the primary changes to this version.

With this kit you will be able to replace most wear items to keep your Bison Pump running strong!

Specs

Design and Construction

  • Replacements for most wear items
  • O-Ring Pick Tool to assist with the removal of O-Rings and Cup Seals
  • Additional stainless-steel hardware

Contents

Manual

  • Contact us directly for instructions.

Parts
