Deep Well 2.0″ Stacked Cylinder Maintenance Kit – Revision D Manufactured after December 2013

SKU 55-204-2-24-01 Category

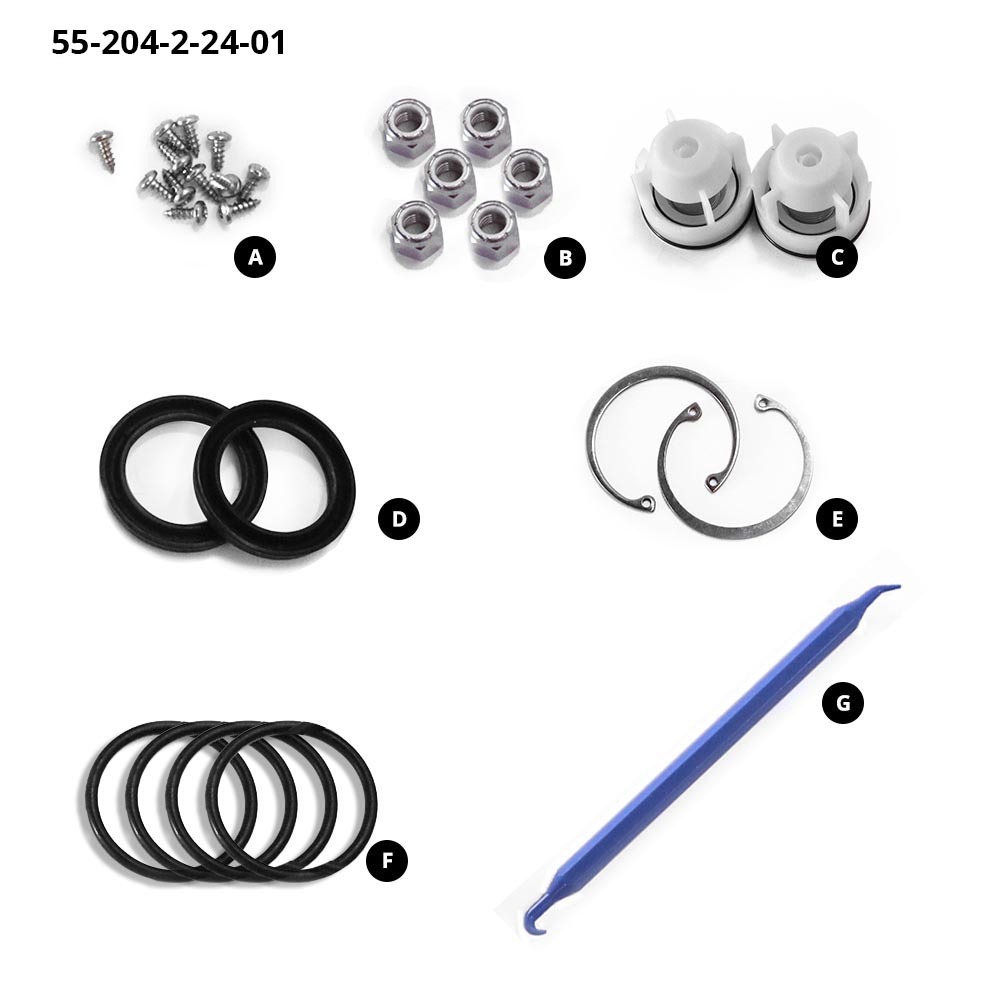

DescriptionQtyPart Number
A) #6 x 3/8” Phillips Head Screw1204-000-1-45-22
B) Hex Lock Nut604-000-1-50-20
C) Check Valve204-000-5-75-01
D) Piston Cup Seal204-002-3-71-03
E) Internal Retaining Ring204-022-1-68-01
F) End Cap O-Ring404-103-3-70-02
G) O-Ring Pick Tool155-001-0-07-00

Share With Others!

Products

This maintenance kit is for 2” stacked cylinders manufactured after December 2013, representing our current cylinder design. The piston assembly and foot valve (our cylinder endcap houses the check valve that serves as the foot valve) use a standard OV25 check valve.

Snap Ring Pliers are required to perform this maintenance. They are not included with the kit. However, you can purchase them from Bison Pumps.

With this kit you will be able to replace all wear items and some hardware to keep your Bison Pump Cylinder running strong!

Specs

Design and Construction

  • Replacements for all wear items
  • Additional stainless-steel hardware in case of loss
  • Seal Pick Tool to assist in uninstall/install of cup seals and O-rings

Contents

Manual

Parts

Related parts:

Pumps

This maintenance kit works with these pumps:
