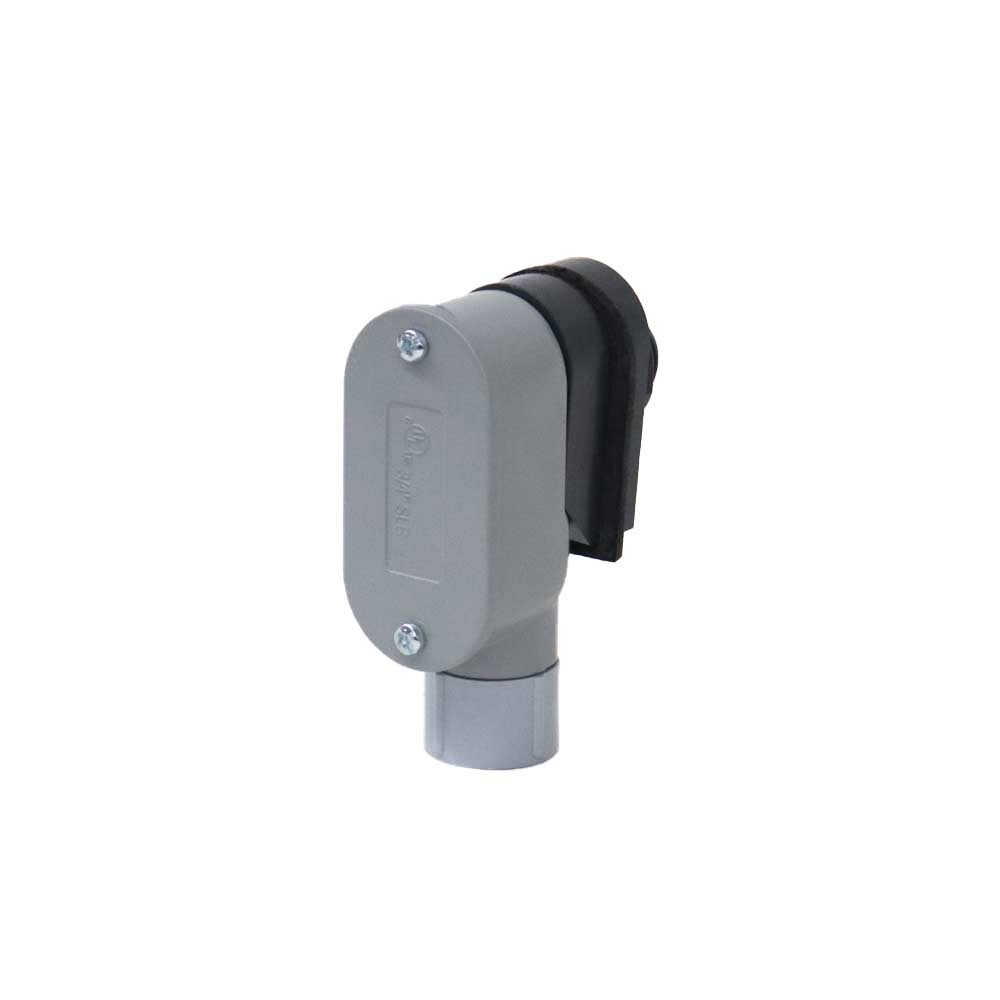

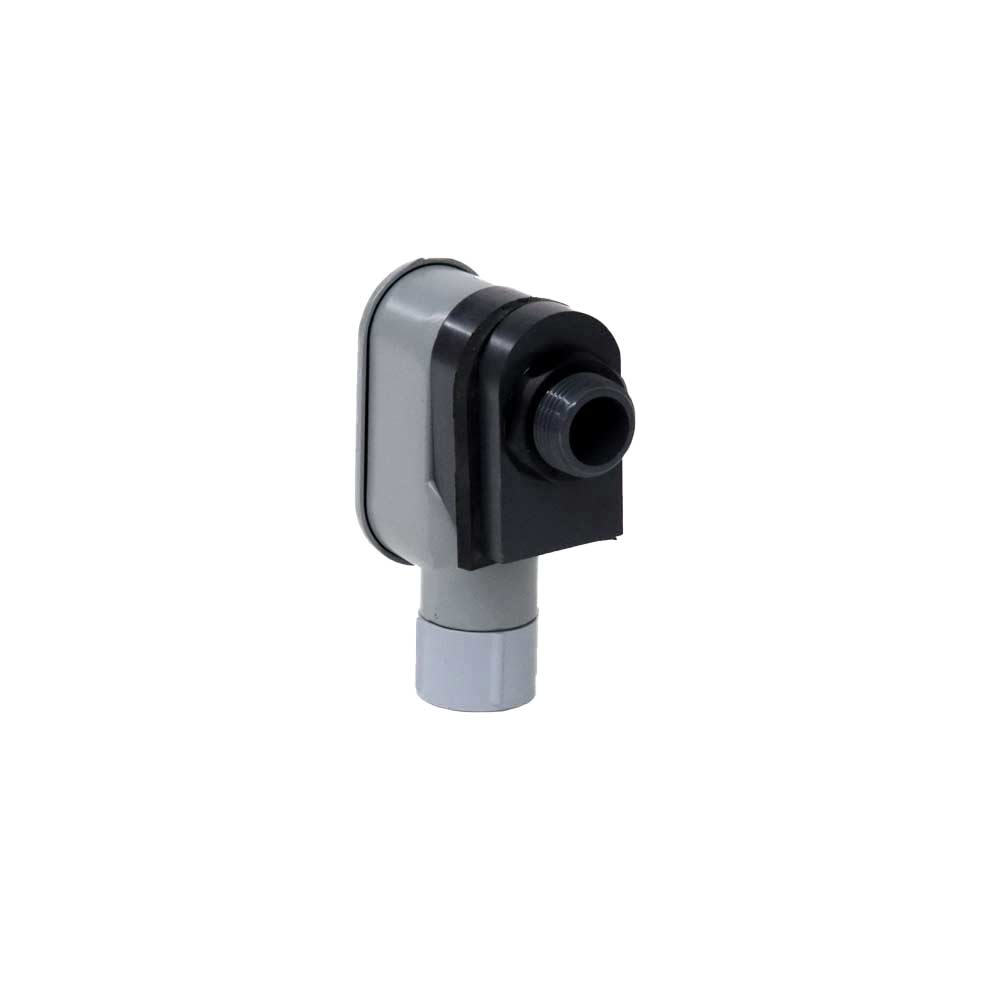

Conduit El – Side Mount

Share With Others!


Bison Pumps are designed to share the same well casing as an electric submersible pump. Therefore, most wells that have a Bison Pump system also have an electric pump with wires feeding the pump for power. These wires can access the well through the side of the well casing. In these cases, Bison Pumps offers a solution for encasing the wire in conduit, Conduit El – Side Mount. This unit is inserted through a hole drilled into the side of the well casing. Using the Inner/Outer Blocks will secure the conduit body to the curved casing wall. If your wires access the well casing through the top of the casing wall, then see our Conduit El – Top Mount.


Design and Construction

  • Pre-assembled
  • Secures body to curved surface
  • Lifetime warranty on all manufactured parts


  • 1 – 3/4” Aluminum Conduit El Body
  • 1 – Inner Block
  • 1 – Outer Block
  • 1 – Gasket
  • 1 – 3/4” NPT PVC Adapter
  • 1 – 3/4” NPT PVC Nipple
  • 1 – 3/4” NPT PVC Nut



This accessory works with these pumps:
